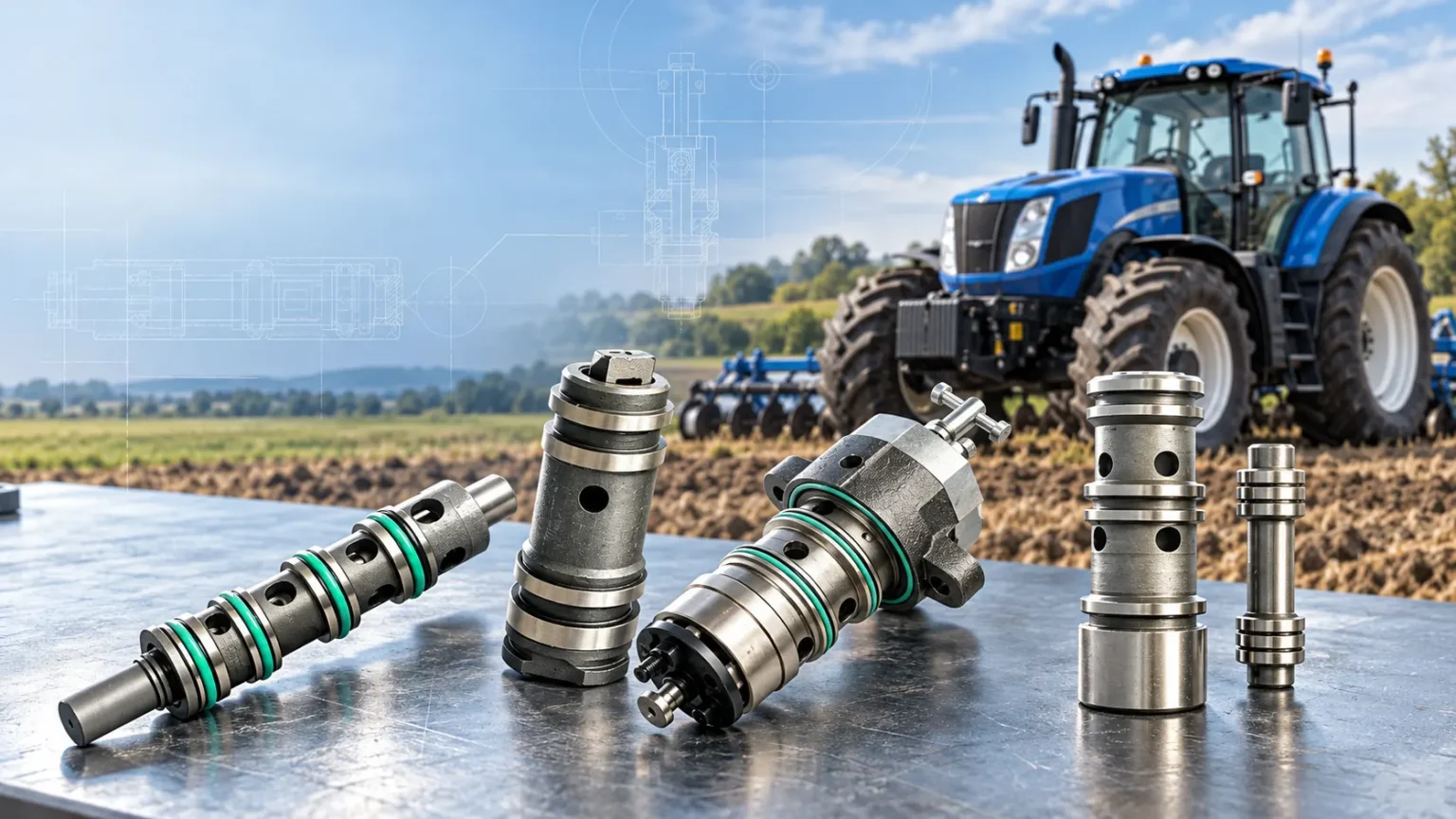

New Holland Hydraulic Parts: Fitment Guide

New Holland hydraulic parts are the precision pumps, control valves, distributor valves, lift ram cylinders, and pistons that raise, hold, and lower three-point hitch implements on a New Holland tractor. Dealers and workshops prevent costly fitment returns by confirming the stamped OEM reference number, tractor model and serial number, cylinder bore size (85 mm or 90 mm), and assembly scope together before placing an order. Never order hydraulic components by visual appearance alone.

If you stock spare parts or repair New Holland tractors professionally, you already know that a weak hydraulic lift stops fieldwork immediately. Worse yet, importing or fitting a mismatched hydraulic valve or piston costs far more in workshop labor, return shipping, and lost farmer trust than the price of the component itself.

Sourcing reliable, zero-defect New Holland hydraulic parts does not require guesswork when your purchasing desk follows a standardized verification routine. By matching catalog codes against physical bore dimensions, valve pressure configurations, and OEM reference numbers, you can eliminate return claims and protect your wholesale margins.

This guide shows you how the hydraulic lift circuit works, which components wear out first, how to cross-reference Kalapi catalog codes (1501 to 1511), how to verify fitment in four steps, and what quality documentation to request from a wholesale manufacturer.

How the New Holland Tractor Hydraulic System Works

In a New Holland tractor hydraulic system, an engine-driven or transmission-driven pump delivers pressurized fluid to a directional control and distributor valve assembly. The valve meters oil into the internal lift cylinder, where the ram piston pushes the rockshaft and lift arms upward under load.

Every component in a New Holland tractor hydraulic system operates under high fluid pressure, typically between 170 and 200 Bar on utility and heritage platforms. Selecting matched New Holland hydraulic parts ensures that flow generated at the pump converts directly into stable lifting force at the rear linkage:

1. Hydraulic Pump: Draws transmission-hydraulic oil from the reservoir and creates continuous flow.
2. Control and Distributor Valve: Directs when, where, and at what pressure oil enters or exits the cylinder circuit.
3. Ram Cylinder: Heavy-walled honed housing that contains the pressurized oil column and guides piston travel.
4. Lift Piston: Seals against the cylinder bore and converts hydraulic pressure into linear mechanical force.
5. Rockshaft and Lift Arms: Transfer piston thrust through the connecting rod and cross-shaft to raise the three-point linkage and implement.

Position control maintains a fixed implement height above the ground, while draft control senses soil resistance through the top link or lower linkage and automatically adjusts working depth. Because both circuits share the same valve block and lift cylinder, internal leakage in any single component shows up as poor depth control. For a deeper breakdown of directional, pressure, and flow valve mechanics, read our guide to tractor control valves.

Which New Holland Tractor Hydraulic Parts Fail First?

Use this diagnostic table to see which New Holland hydraulic parts to inspect first when a tractor enters your workshop with lift complaints. Treat symptom matching as a starting point rather than a final diagnosis, and always test line pressure and inspect the cylinder bore before ordering replacement New Holland tractor hydraulic parts.

Excessive heat thins hydraulic oil, degrades nitrile and Viton seals, and accelerates metal-to-metal scoring inside valve spools. Review our guide to common tractor overheating and hydraulic system issues alongside our hydraulic lift pump versus hydraulic lift plunger comparison to separate pump faults from cylinder faults accurately.

New Holland Hydraulic Control Valve: Codes, References and Models

A New Holland hydraulic control valve meters pressurized oil to the lift cylinder with micron-level spool clearance. External casting shape alone never proves fitment, because internal gallery drilling, safety relief integration, and port thread layouts differ across New Holland tractor generations.

When dealers stock New Holland hydraulic parts for three-point linkage overhauls, control and distributor valves represent the highest-precision assemblies on the shelf. Our manufacturing catalog lists these core valve references:

Distributor Valves vs. Pistons: Know the Scope (1503A, 1504, 1505)

Distributor components require strict SKU verification before you submit a purchase order:

• Code 1503A: Hydraulic Distributor Valve for New Holland tractors.
• Code 1504: Distributor Piston only for New Holland / John Deere Tractor (precision-ground sub-component).
• Code 1505: Distributor Control Valve Assly for New Holland / John Deere Tractor.

An individual distributor piston (1504) and a complete distributor valve assembly (1505) are completely different purchases in price, weight, and workshop scope. Always state the exact code and scope on your inquiry. Listed models represent standard catalog applications rather than a blanket guarantee for every regional sub-variant, so include your tractor serial number when ordering any New Holland hydraulic control valve.

Lift Cylinders and Pistons: Bore, Groove and Scope

When ordering lift cylinders and pistons, match the internal bore diameter first, choosing between 85 mm and 90 mm specifications. Next, confirm piston ring groove configuration, material grade, and whether your customer needs the bare ram cylinder, the piston alone, or a pre-matched cylinder-and-piston assembly.

To prevent costly workshop delays when ordering these New Holland hydraulic parts, cross-check your requirements against our cylinder and piston reference table:

Notice that the “A” suffix (1508A and 1510A) designates a complete ram cylinder supplied with its matched piston. Installing a brand-new piston (1509 or 1511) inside an old cylinder whose wall is oval or deeply scored will shred the new seal ring within hours of fieldwork. Always measure and inspect the existing cylinder wall with a bore gauge before ordering a standalone piston.

Pumps and Seals: What to Verify Before You Order

Our published New Holland catalog focuses on high-demand lift control valves, distributor assemblies, pistons, and ram cylinders, while broader hydraulic tractor parts including external tooth gear pumps (1 cm³ to 200 cm³ swept volume) and seal kits are supplied against specific stamped part numbers.

When inquiring about hydraulic pumps alongside other New Holland hydraulic parts, verify three mechanical specifications up front:

1. Volumetric Displacement: Measured in cubic centimeters per revolution (cc/rev) or liters per minute (LPM) at rated engine RPM.
2. Shaft Rotation Direction: Clockwise (CW) or Counter-Clockwise (CCW) viewed facing the drive shaft spline or tang.
3. Flange and Port Interface: Pilot collar diameter, bolt-circle pattern, and suction/pressure port thread standard (BSPP, SAE O-Ring Boss, or Metric DIN).

Send the stamped housing number from the old pump body to our engineering desk so we can confirm exact interchangeability. Because worn pump gears frequently mimic control valve pressure leaks, perform a dead-head flow and pressure test before replacing either component.

Costly Mistakes When Buying New Holland Hydraulic Parts

Most B2B return claims stem from ordering by external casting photos, mixing up high-pressure (HP) and non-HP valve blocks, or replacing only a piston inside a damaged cylinder. Dealers who order New Holland hydraulic parts by catalog code, chassis serial number, and measured bore avoid almost all warranty disputes.

Watch out for these five common procurement mistakes:

• Ordering from a photograph alone: Identical external castings often hide different internal relief springs, spool lands, and port thread pitches.
• Confusing Non-HP and HP valve versions: Our catalog separates Non-HP (1506 for 4710/3600) and HP assemblies with safety valves (1507 for 3230/3037/3130). Verify which system the tractor uses before ordering.
• Buying a standalone piston when an assembly is needed: If the cylinder bore is scratched, order 1508A (85 mm) or 1510A (90 mm) instead of 1509 or 1511 alone.
• Trusting hood decals without serial numbers: Production-year splits alter hydraulic lift cover internals across export markets.
• Skipping sample verification on bulk orders: Testing a single sample piece exposes local variant differences before a full pallet ships.

Four-Point Fitment Check for New Holland Hydraulic Parts

Follow a four-step verification routine covering Number, Dimension, Interface, and Scope before finalizing any wholesale purchase order. Standardizing this check across your purchasing desk ensures that every shipment of New Holland hydraulic parts matches the regional tractor variants in your market.

1. Number: Record Stamped and OEM Reference Codes

Clean the old casting and record every stamped foundry code and OEM reference number (such as 5169834 or 82826147), together with the tractor model and chassis serial number.

2. Dimension: Measure Bore, Groove, and Thread Specs

Use calibrated vernier calipers to measure cylinder bore diameter (85 mm vs. 90 mm), piston ring groove count, overall spool length, and port thread diameter. Photograph the old part next to a steel millimeter ruler.

3. Interface: Confirm Mounting Pattern and Port Layout

Check the bolt hole spacing, dowel pin locations, and oil passage alignment against the hydraulic lift housing. For gear pumps, confirm spline count and rotation direction.

4. Scope: Specify Single Component vs. Complete Assembly

State clearly on your RFQ whether you require a bare cylinder (1508/1510), a standalone piston (1504/1509/1511), or a complete factory-matched assembly (1505/1508A/1510A). If any parameter remains uncertain, order one sample unit first. A single sample costs far less than a container of mismatched stock.

After Fitting: How to Protect New Holland Hydraulic Parts

Always install replacement New Holland hydraulic parts into a flushed, decontaminated hydraulic system with a fresh filter element and manufacturer-approved oil. Metallic debris left behind from a previous component failure will score a new cylinder bore and jam a new control valve spool within minutes of startup.

Instruct workshop technicians to complete four post-installation steps before releasing the tractor to the field:

1. Drain and Flush Contaminated Fluid: Remove old milky or metal-laden transmission-hydraulic oil and clean the magnetic drain plug and suction screen.
2. Replace the Hydraulic Filter: Fit a new micron-rated hydraulic filter and refill with clean Universal Tractor Transmission Oil (UTTO) matching the operator manual viscosity grade.
3. Bleed Trapped Air Unloaded: Cycle the three-point hitch up and down five to ten times with no implement attached to purge air pockets from the pump and ram cylinder.
4. Inspect Joints Under Operating Temperature: Bring the oil to working temperature, test position and draft control response under load, and verify zero weeping around mating gaskets and O-rings.

New Holland Tractor Spare Parts Wholesale: What to Ask Your Supplier

For New Holland tractor spare parts wholesale, request verifiable quality documentation before comparing unit prices, and match each technical assurance to the New Holland hydraulic parts you plan to stock. Reliable export manufacturers provide batch traceability, clear SKU labeling, and sample evaluation policies.

Before awarding a bulk supply contract, require these six deliverables from your supplier:

• Verifiable ISO 9001:2015 Certification: Confirms documented quality management across raw casting inspection, CNC machining, and final assembly.
• Batch Inspection Records: Details exactly which critical dimensions (bore diameter, spool-to-bore micron clearance, surface hardness, and hydrostatic pressure hold) are measured per production lot.
• Export Packaging Labeled by Part Number: Individual rust-preventive VCI polybags and corrugated boxes clearly marked with both catalog codes (1502 to 1511) and reference numbers for fast warehouse put-away.
• Written Model Application Lists: Clear cross-reference tables per code so your counter sales staff can quote accurately.
• Pre-Volume Sample Policy: Ability to inspect and field-test samples prior to full container or pallet commitment.
• Clear Aftermarket vs. Genuine Disclosure: Honest commercial documentation for smooth customs clearance and dealer transparency.

Review our tractor parts supplier MOQ and pricing guide and our bulk B2B tractor spare parts manufacturer page for full commercial terms.

Why Global Dealers Source New Holland Hydraulic Parts from Kalapi

Kalapi Tractor Spares Pvt. Ltd. manufactures and exports precision tractor components from our 9,000+ sq. yard facility in Rajkot, Gujarat, India. As an ISO 9001:2015 certified company, our manufacturing infrastructure and strict quality policy combine advanced CNC machining, ST 52.3 seamless cylinder honing, induction heat treatment, and multi-stage inspection to deliver repeatable OEM-compatible fitment.

Request New Holland Hydraulic Parts and Fitment Support

Correct fitment protects your workshop bay time and wholesale profit margins. Send our technical export desk your tractor model, chassis serial number, Kalapi or OEM reference number, caliper photos beside a ruler, and target order quantities, and we will reply promptly with stock availability, lead times, and tier-based B2B pricing.

Browse our complete New Holland hydraulic parts catalog, or reach out directly via our Contact Us page to request your custom quotation:
